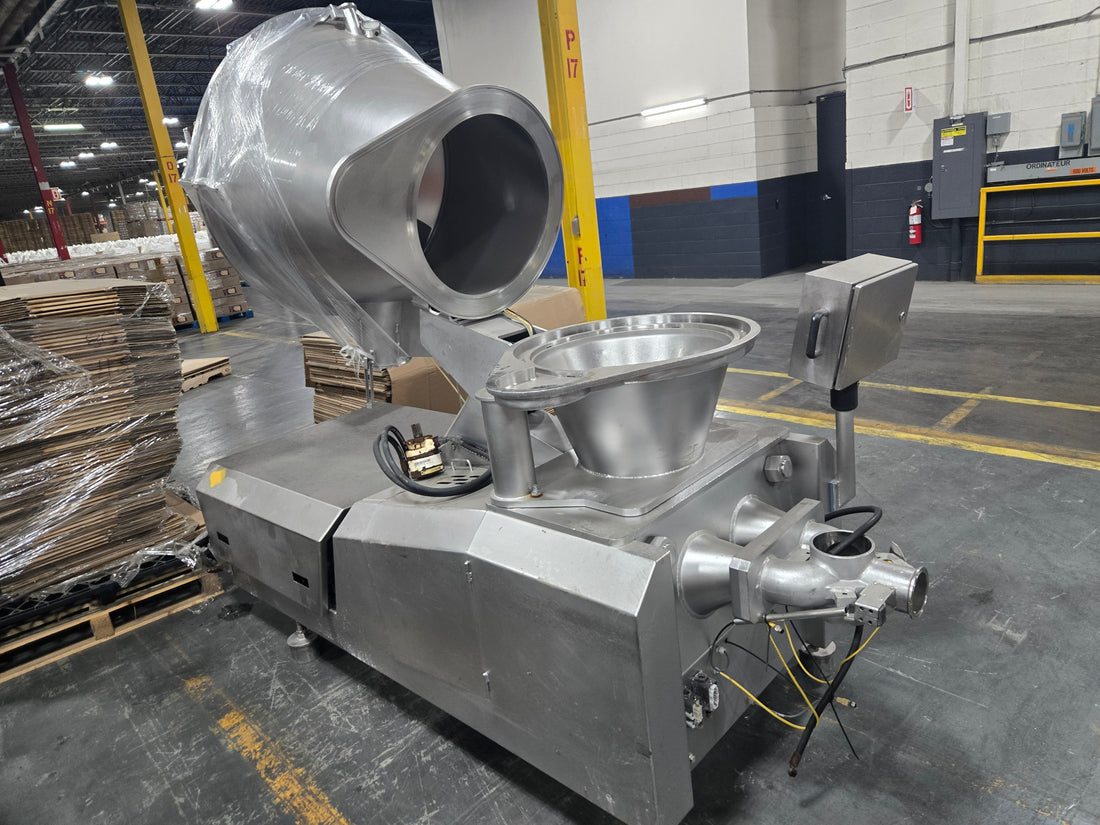

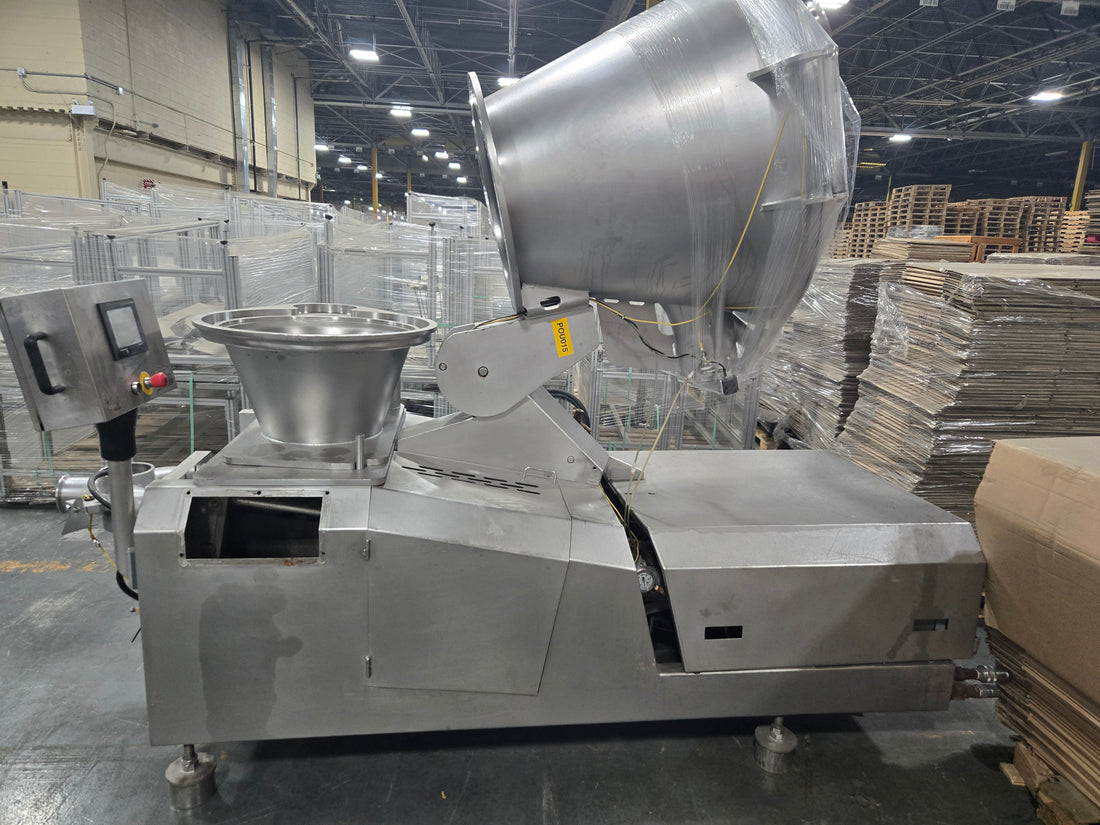

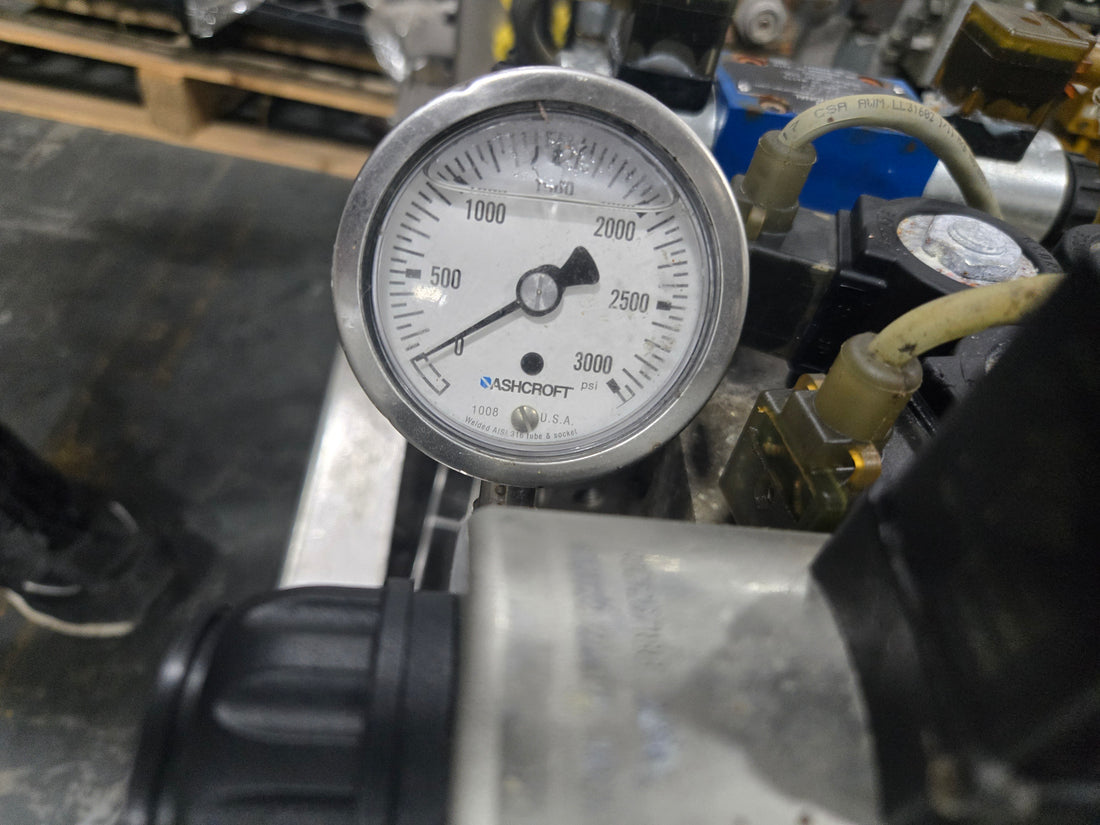

2008 Marlen Opti280 Vacuum Stuffer & Pump
Marlen’s Opti 280 features a twin-piston vacuum stuffing and pumping system with a variety of hopper options designed to match product requirements. Maximum capacity is 28,000 lbs per hour, 430 psi pumping pressure. The Opti 280 is ideal for all applications. Can be equipped with an optional hydraulic fluid cooling unit without the need for water cooling.
Specifications:
Piston Stroke: 14″ (355 mm)
Maximum Capacity: 28,000 lbs/hr (12,701 kg/hr)
Maximum Volume (based on water): 55 gpm (208 lpm) based on water

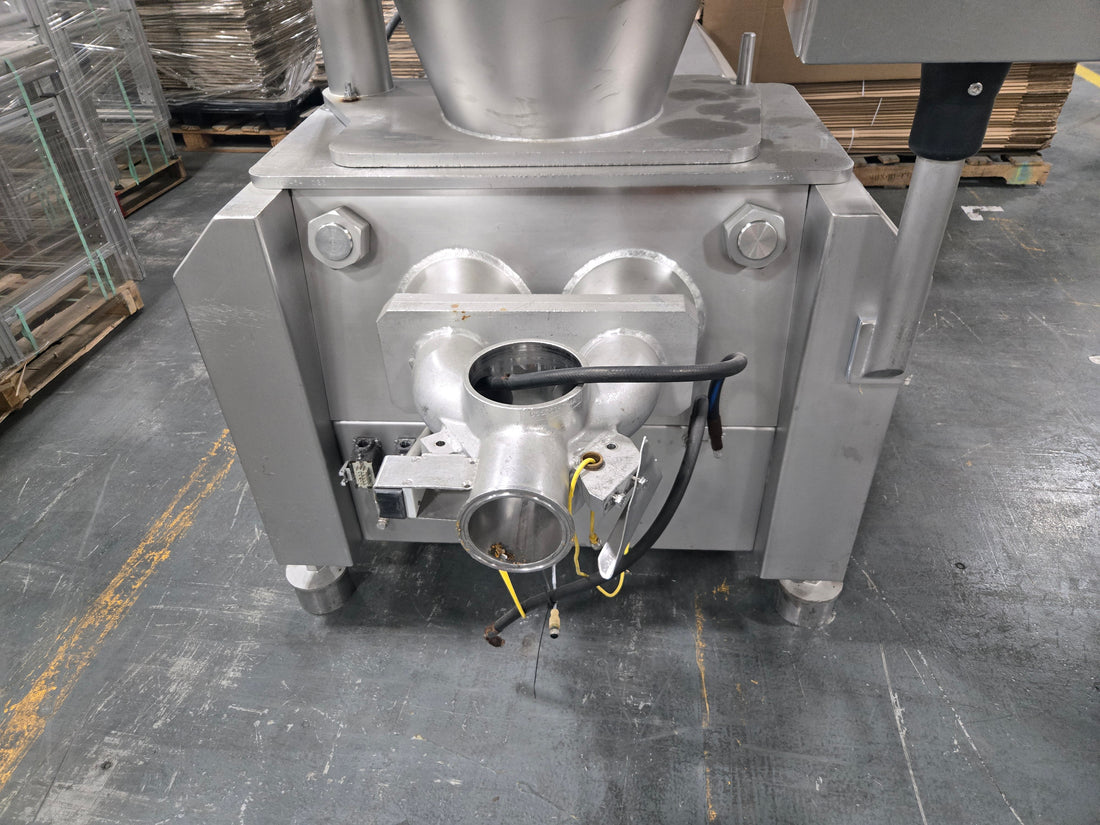

Product Outlet: 4″ (102 mm)
Max. Product Pressure: 480 psi (33 bar)
Machine Weight: 4,000 lbs (1815 kg)
Pump Electrical: 110V, 10AMP, 1-Ph
Air Requirements: 3 CFM at 100 PSI

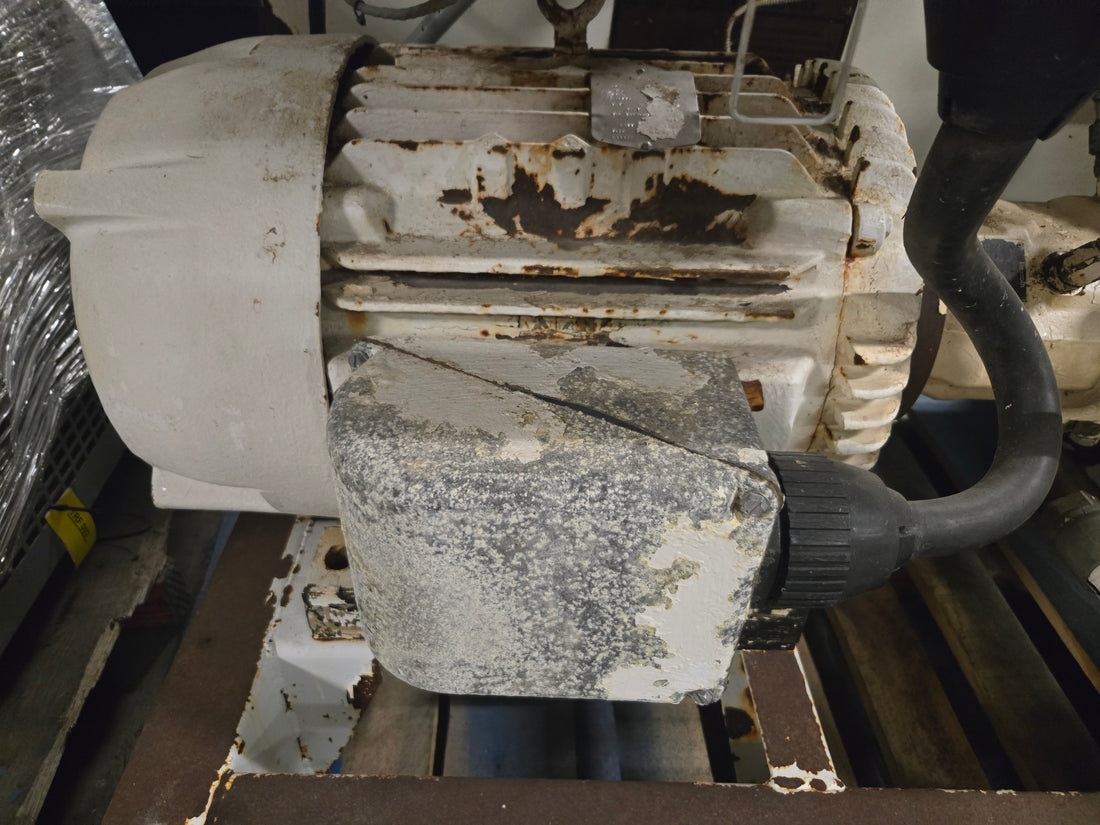

Power Unit: 40 HP, 230/460V, 3-Ph/60HZ, 104/52 AMP
Cooling Water: Up to 8 GPM

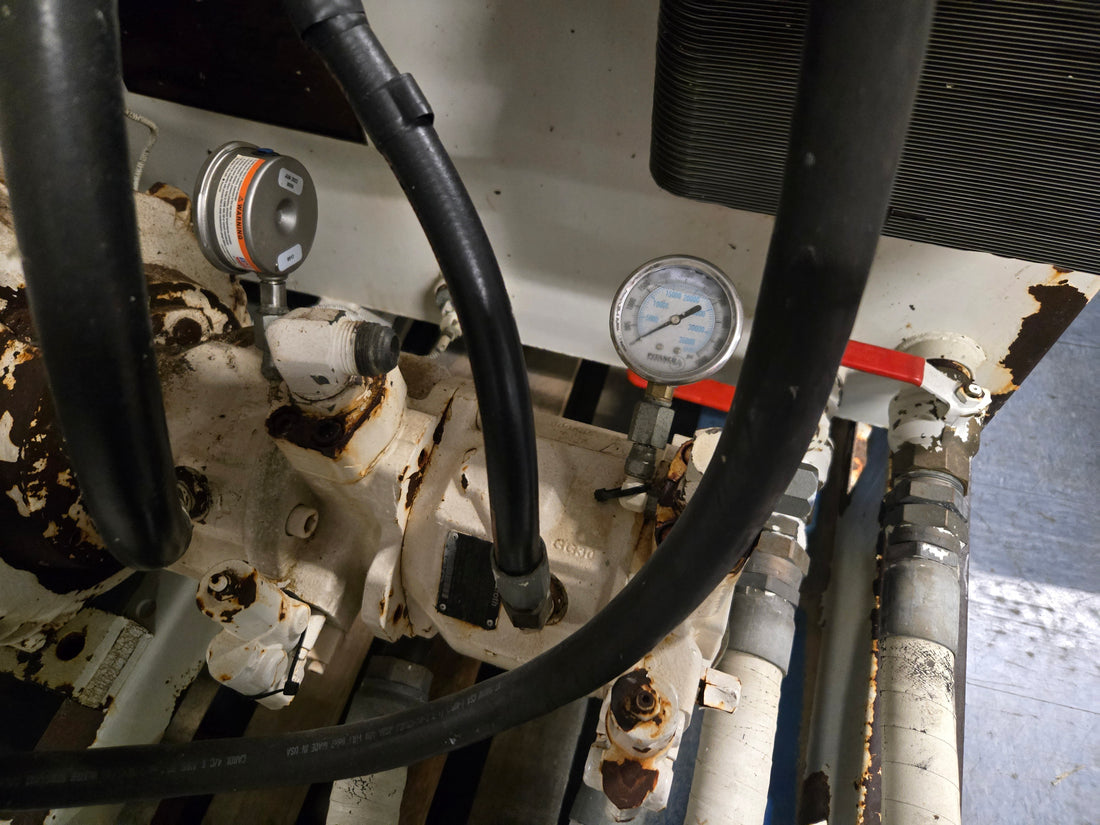

Vacuum Pump: 7.5 HP, 130 CFM, 230/460V, 22/11 AMP (or) 10 HP, 173 CFM, 230/460V, 27/14 AMP

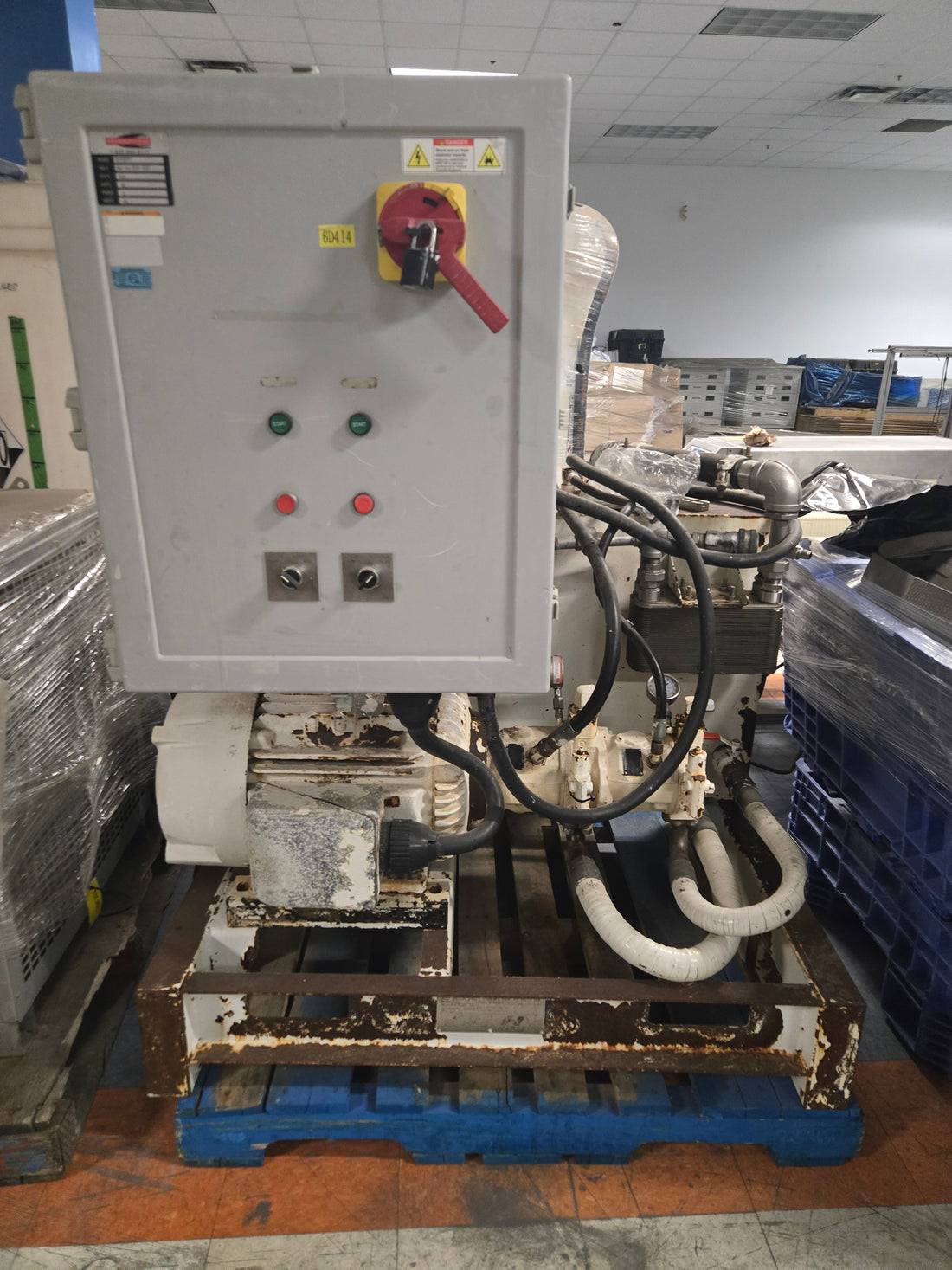

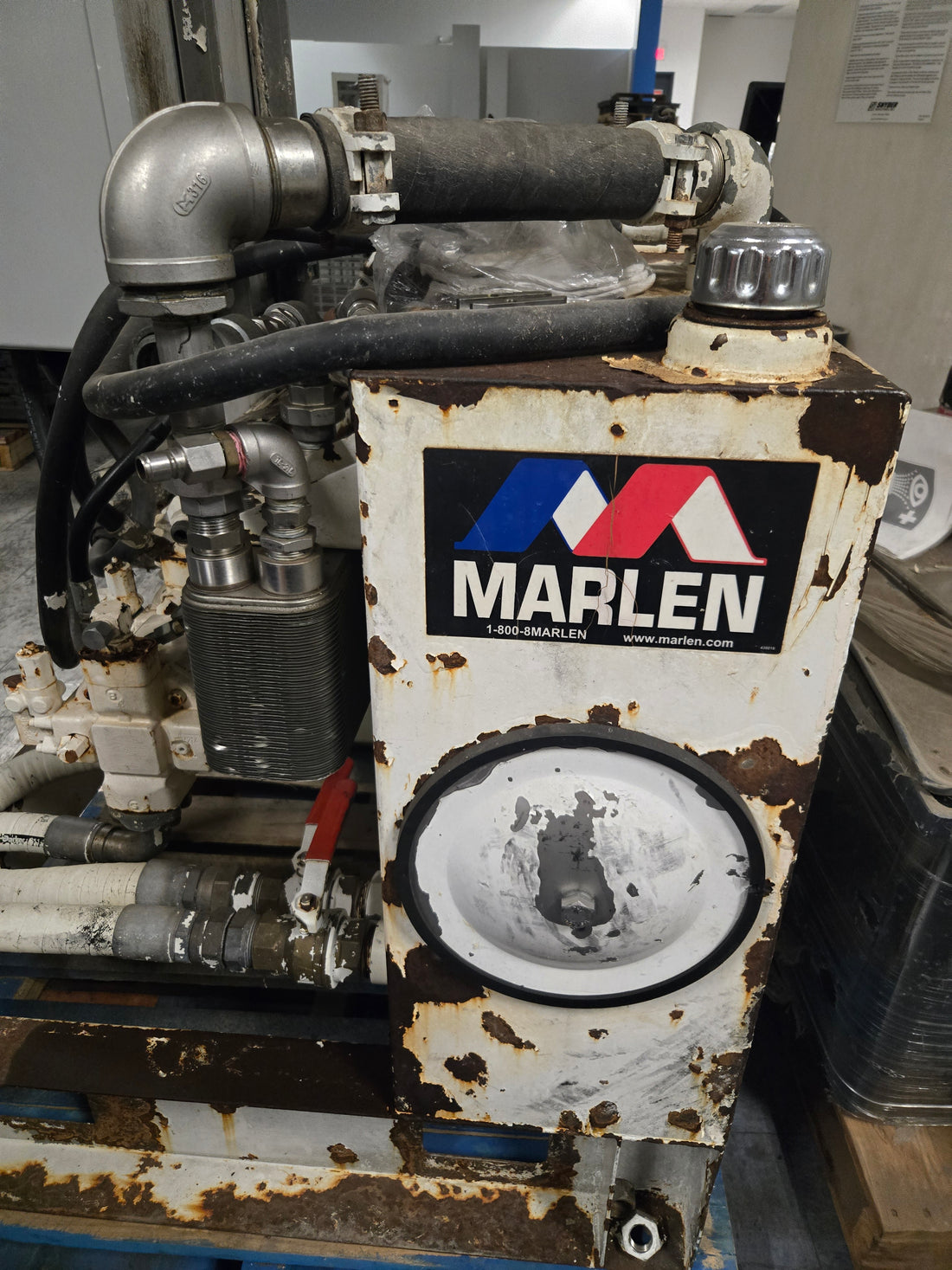

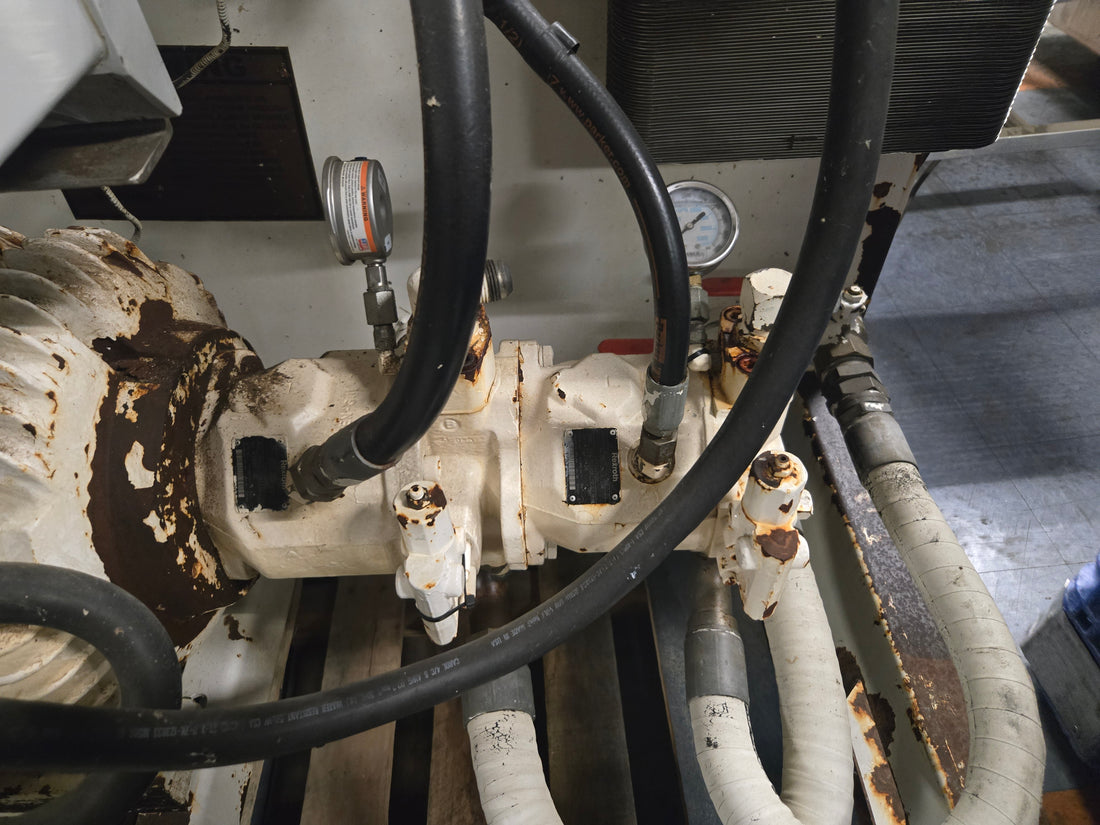

Available with Marlen Hydraulic Unit Model Number 6312071 with 40HP Motor
For inquiries about the equipment or to set up an inspection, please reach out to us at info@capexeg.com or 514-536-0135 |
